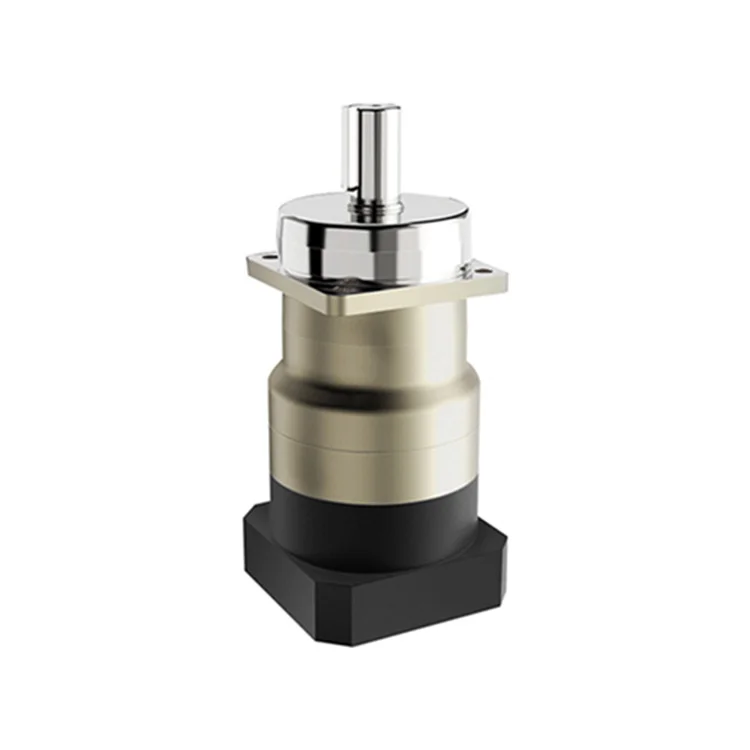

KSP Series Planetary GearBox
- High Precision Planetary Gearbox
- Quietly operation of KSP speed reducer thanks to the use of helical gears.
- High precision positioning for backlash smaller than 3 arc.min.
- High rigidity and high toque of precision gearbox due to the use of integrated roller bearing.
- It is convenient to install our servo gearbox on any brand of motor with any size.
(Nominal output torque) T2N (nm) Specifications:
| Stage Level | Ratio | KSP060 | KSP075 | KSP75B | KSP100 | KSP100B | KSP142 |
|---|---|---|---|---|---|---|---|
| L1 | 3 | 50 | 130 | 130 | 208 | 208 | 342 |
| L1 | 4 | 50 | 140 | 140 | 290 | 290 | 542 |
| L1 | 5 | 60 | 160 | 160 | 330 | 330 | 650 |
| L1 | 7 | 50 | 140 | 140 | 300 | 300 | 550 |
| L1 | 10 | 40 | 100 | 100 | 230 | 230 | 450 |
| L2 | 15 | 55 | 130 | 130 | 208 | 208 | 342 |
| L2 | 20 | 50 | 140 | 140 | 290 | 290 | 542 |
| L2 | 25 | 60 | 160 | 160 | 330 | 330 | 650 |
| L2 | 30 | 55 | 150 | 150 | 310 | 310 | 600 |
| L2 | 35 | 50 | 140 | 140 | 300 | 300 | 550 |
| L2 | 40 | 45 | 120 | 120 | 230 | 230 | 500 |
| L2 | 50 | 60 | 160 | 160 | 330 | 330 | 650 |
| L2 | 70 | 50 | 140 | 140 | 300 | 300 | 550 |
| L2 | 100 | 40 | 100 | 100 | 230 | 230 | 450 |
